TSA Industries provides our customers with the best service possible! We will continue to strive to make TSA Industries your first choice for the best products, lighting fast shipping, and superior customer service.

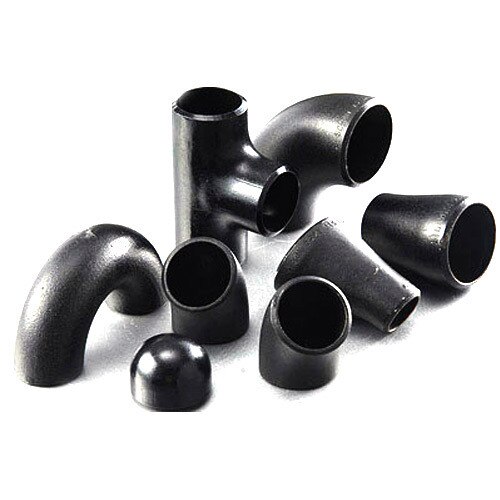

Carbon steel fittings
Fittings through a worldwide network of stock-keeping branches. These ASTM A234 WPB Buttweld Fittings is use in various industries
Stainless steel flanges come in different grades of stainless steel, which offer varying levels of corrosion resistance, strength, and other mechanical properties.
Carbon Steel ASTM A234 WPB Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Carbon Steel ASTM A234 WPB Buttweld Pipe.
Fittings through a worldwide network of stock-keeping branches. These ASTM A234 WPB Buttweld Fittings is use in various industries
Carbon steel flanges are typically manufactured in various grades, each of which is suitable for specific temperature and pressure applications. we also supply stainless steel flanges .
Stainless steel butt weld fittings are a type of pipe fitting that is designed to connect two sections of stainless steels pipes or tubes together. These fittings are made from stainless steel with 2 types of finishing “seamless/welded” which provides excellent resistance to corrosion, high temperatures, and other harsh environments. They are available in a variety of shapes and sizes, including elbows, tees, reducers, and caps, and can be used in a range of applications.
ASTM A403: 304, 316
1. Food and beverage processing
2. Pharmaceutical manufacturing
3. Power generation
4. Oil and gas exploration
5. Water treatment
6. Chemical and petrochemical processing
Elements
| Grade | Carbon (C) | Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) | Other Elements |
|---|---|---|---|---|---|
| 304/304L | 0.08% max | 18-20% | 8-10.5% | – | – |
| 316/316L | 0.08% max | 16-18% | 10-14% | 2-3% | – |
Sizes
| Type | Size Range | Schedule (Sch) |
|---|---|---|
| Elbows | 1/2″ – 48″ | Sch 10 – Sch 160, XXS |
| Tees | 1/2″ – 48″ | Sch 10 – Sch 160, XXS |
| Reducers | 1/2″ – 48″ | Sch 10 – Sch 160, XXS |
| Caps | 1/2″ – 36″ | Sch 10 – Sch 160, XXS |
| Stub Ends | 1/2″ – 24″ | Sch 10 – Sch 160, XXS |
| Crosses | 1/2″ – 36″ | Sch 40 – Sch 160, XXS |
| Concentric Reducers | 1/2″ x 3/8″ – 36″ | Sch 40 – Sch 160, XXS |
| Eccentric Reducers | 1/2″ x 3/8″ – 36″ | Sch 40 – Sch 160, XXS |
Stainless steel flanges come in different grades of stainless steel, which offer varying levels of corrosion resistance, strength, and other mechanical properties.
304,316
•Slip-On Flanges
•Weld Neck Flanges
•Threaded Flanges
•Socket Weld Flanges:
•Lap Joint Flanges
•Blind Flanges:
•Orifice Flanges
Application:
•Chemical processing
•Oil and gas
•Food and beverage
•Pharmaceutical
•Water treatment
Elements
| Element | Grade 304 | Grade 316 |
|---|---|---|
| Carbon (C) | 0.08% max | 0.08% max |
| Manganese (Mn) | 2.00% max | 2.00% max |
| Phosphorus (P) | 0.045% max | 0.045% max |
| Sulfur (S) | 0.030% max | 0.030% max |
| Silicon (Si) | 0.75% max | 0.75% max |
| Chromium (Cr) | 18.00% – 20.00% | 16.00% – 18.00% |
| Nickel (Ni) | 8.00% – 10.50% | 10.00% – 14.00% |
| Molybdenum (Mo) | – | 2.00% – 3.00% |
Types & Sizes
| Type of Flange | Size Range | Schedule Range |
|---|---|---|
| Slip-On Flange | 1/2″ – 36″ | Sch 5 – Sch 160 |
| Weld Neck Flange | 1/2″ – 36″ | Sch 5 – Sch XXS |
| Threaded Flange | 1/2″ – 36″ | Sch 5 – Sch 80 |
| Socket Weld Flange | 1/2″ – 36″ | Sch 5 – Sch 160 |
| Lap Joint Flange | 1/2″ – 36″ | Sch 5 – Sch 80 |
| Blind Flange | 1/2″ – 36″ | Sch 5 – Sch XXS |
| Orifice Flange | 1/2″ – 36″ | Sch 5 – Sch XXS |
Carbon Steel ASTM A234 WPB Pipe Fittings are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Carbon Steel ASTM A234 WPB Buttweld Pipe.
Fittings through a worldwide network of stock-keeping branches. These ASTM A234 WPB Buttweld Fittings is use in various industries.
ASTM A234 / ASME/ANSI B16.9/ ANSI B16.28 / MSS SP-43/SP-79 A234 / SCH40/ SCH80
ASTM C83600 , JIS H5121 , DIN 1705 CuSn5ZnPb (Rg5) , BS 1400 LG 2
•Carbon Steel Buttweld Tee
•Carbon Steel Reducer
•Carbon steel Tee
•Carbon Steel Welded Buttweld Fitting
•Carbon Steel Buttweld Pipe Cap
•Carbon Steel Seamless Pipe Fitting
•Carbon steel Elbow
Application:
•Oil and Gas Pipeline
•Chemical Industry
•Plumbing
•Heating
•Water Supply Systems
•Power Plant
•Paper & Pulp Industry
•General Purpose Applications
•Fabrication Industry
•Food Processing Industry
•Structural Pipe
Elements
| Grade | Carbon Content | Manganese | Silicon | Sulfur | Phosphorus | Chromium | Molybdenum |
|---|---|---|---|---|---|---|---|
| ASTM A234 WPB | 0.30% max | 0.29-1.06% | 0.10% max | 0.058% max | 0.050% max | – | – |
| ASTM A105 | 0.35% max | 0.60-1.05% | 0.10% max | 0.040% max | 0.040% max | – | – |
| ASTM A106 Grade B | 0.30-0.35% | 0.60-1.05% | 0.10% max | 0.035% max | 0.035% max | – | – |
| ASTM A234 WP11 | 0.05-0.15% | 0.30-0.80% | 0.50-1.00% | 0.040% max | 0.040% max | 1.00-1.50% | 0.44-0.65% |
| ASTM A234 WP22 | 0.05-0.15% | 0.30-0.60% | 0.50-1.00% | 0.040% max | 0.040% max | 1.90-2.60% | 0.87-1.13% |
| ASTM A234 WP5 | 0.15% max | 0.30-0.60% | 0.50-1.00% | 0.040% max | 0.040% max | 4.00-6.00% | 0.44-0.65% |
| ASTM A420 WPL6 | 0.30% max | 0.60-1.35% | 0.10% max | 0.040% max | 0.040% max | – | – |
Sizes
| Type of Fitting | Size Range | Schedule (Sch) |
|---|---|---|
| Elbows | 1/2″ – 48″ | Sch 10 – Sch 160, XXS |
| Tees | 1/2″ – 48″ | Sch 10 – Sch 160, XXS |
| Reducers | 1/2″ – 48″ | Sch 10 – Sch 160, XXS |
| Caps | 1/2″ – 36″ | Sch 10 – Sch 160, XXS |
| Stub Ends | 1/2″ – 36″ | Sch 10 – Sch 160, XXS |
| Couplings | 1/8″ – 4″ | Sch 40 – Sch 160, XXS |
| Nipples | 1/8″ – 4″ | Sch 40 – Sch 160, XXS |
| Bushings | 1/8″ – 4″ | Sch 40 – Sch 160, XXS |
| Plugs | 1/8″ – 4″ | Sch 40 – Sch 160, XXS |
Carbon steel flanges are typically manufactured in various grades, each of which is suitable for specific temperature and pressure applications. we also supply stainless steel flanges .
Carbon Steel Flange and end flange connectors are basically made of carbon steel. Common standards include ASTM A105, ASTM A350, ASTM A694, ASTM A182.
•Weld Neck Flange
•Slip On Flange
•Blind Flange
•Socket Weld Flange
•Threaded Flange
•Reducing Flanges
•Etc…
Oil and gas pipelines, Chemical processing, Power generation, Water treatment, HVAC systems & etc…
| Flange Type | Size Range (inches) | Pressure Class Range |
|---|---|---|
| Weld Neck Flange (WN) | 1/2″ – 60″ | 150 – 2500 |
| Slip-On Flange (SO) | 1/2″ – 60″ | 150 – 1500 |
| Blind Flange (BL) | 1/2″ – 60″ | 150 – 2500 |
| Threaded Flange (TH) | 1/2″ – 60″ | 150 – 2500 |
| Socket Weld Flange (SW) | 1/2″ – 60″ | 150 – 2500 |
| Chemical Composition | |
|---|---|
| Element | Composition， % |
| Carbon | 0.35max |
| Manganese | 0.60-1.05 |
| Phosphorus | 0.035 max |
| Sulfur | 0.040 max |
| Silicon | 0.10-0.35 |
| Copper | 0.40 maxᴬ |
| Nickel | 0.40 maxᴬ |
| Chromium | 0.30maxᴬᴮ |
| Molybdenum | 0.12maxᴬᴮ |
| Vanadium | 0.08max |
| Mechanical requirements | |
|---|---|
| Tensile strength, min， ksi [MPa] | 70[485] |
| Yield strength, min， ksi[MPa] | 36[250] |
| Elongation in 2 in, or 50mm, min, % | |
| Basic minimum elongation for walls 5/16in.[7.9mm] and over in thickness, strip tests. | 30 |
| When standard round 2-in.or 50-mm gauge length or smaller proportionally sized specimen with the gauge length equal to 4Dis used | 22 |
| For strip tests, a deduction for each 1/32-in. [0.8mm] decrease in wall thickness below 5/16in. [7.9mm] from the basic minimum elongation of the percentage points of table 3 | 1.5° |
| Reduction of area， min, %° | 30 |
| Hardness, HBW， max | 187 |
Aluminium plates are the result of basic raw-form aluminium being pressed and rolled into panel form under high pressure. An alloy having high mechanical stress, low or high strength but excellent in formability, weldability, and corrosion resistance, high conductibility of electricity and heat.
Series | Description | Feature |
1000 | 1100 representative series aluminum plate is also known as pure aluminum, in the series in 1xxx series belongs to all the aluminium quantity of a maximum number of series. Purity can achieve 99.00% above. | Low strength but excellent in formability and weldability, corrosion resistance, high conductibility of electricity and heat. |
5000 | 5xxx series representatives 5052, 5083. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series. | Excellent corrosion resistance and weld ability together with easy to process and weld and superior hardness & heatproof can be anodized for increased corrosion resistance |
6000 | 6xxx series represents 6061 mainly contain magnesium and silicon of two elements, so focused on the 4000 series and the advantages of the 5000 series 6061 is a cold treatment aluminum forging products, apply to fight against corrosion, oxidizing demanding applications. | Easy to process, good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment |
7000 | 7000 aluminum alloy is another common alloy, wide variety. It contains zinc and magnesium. The best strength in the common aluminum alloy is 7075 alloy, but it can’t be welded, and its corrosion resistance is rather poor, many manufacturing parts with CNC cutting is 7075 alloy. | 7000 series is high tensile to process with special alloy |
Chemical Composition % | ||||||||||||
Alloy No. | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | V | Ti | Zr | Al |
1100 | 0.45 | 0.35 | 0.05-0.20 | 0.03 | – | – | – | 0.01 | 0.05 | – | – | Remainder |
5052 | 0.25 | 0.4 | 0.1 | 0.1 | 2.2-2.8 | 0.15-0.35 | – | 0.1 | – | – | – | Remainder |
5083 | 0.4 | 0.4 | 0.1 | 0.40-1.0 | 4.0-4.9 | 0.05-0.25 | – | 0.25 | – | 0.15 | – | Remainder |
6061 | 0.4-0.8 | 0.7 | 0.15-0.40 | 0.15 | 0.8-1.2 | 0.04-0.35 | – | 0.25 | – | 0.15 | – | Remainder |
6063 | 0.2-0.6 | 0.35 | 0.1 | 0.1 | 0.45-0.90 | 0.1 | – | 0.1 | – | 0.1 | – | Remainder |
7075 | 0.4 | 0.5 | 1.2-2.0 | 0.3 | 2.1-2.9 | 0.18-0.28 | – | 5.1-6.1 | – | 0.2 | – | Remainder |
It is a light weight silvery white metal which is ductile and soft.
Thickness : 0.3mm – 127mm Width : 4FT, 5FT
Length : Standard is 8ft or 10ft but customize size is available.
Aluminum Flat Bars are available in a wide variety of sizes. Aluminum alloy has lightweight, excellent electrical conductivity, and high corrosion resistance, which makes it a good material for applications in medical assembly, aircraft construction, and structural and electrical components.
Grade: 6061 / 6063
Aluminium round bar are an essential component in many industrial applications. It is corrosion-resistant, water proof, rustproof. It works very well in low temperatures and retains its toughness and hardness. Aluminium round bar are also used on food processing units, heat exchangers, and other similar industrial applications. It is being more thermal conducive than steel, the aluminium products can be used in both cooling and heating applications. Its nontoxic properties, the metal is extensively used in the manufacture of several cooking utensils and appliances.
Grade: 6061 / 6063
Aluminum angles consist of two legs which is the types of equal or unequal lengths and arranged to form a 90 degree angle. Because of the material strength and lightweight construction, these components are suitable for use in structural and general engineering and manufacturing applications across a wide range of industries, including building, construction, and transportation.
Grade:6061 / 6063
Aluminium square bar are an essential component in many industrial applications. It is corrosion-resistant, water proof, rustproof. It works very well in low temperatures and retains its toughness and hardness. Aluminium square bar are also used on food processing units, heat exchangers, and other similar industrial applications. It is being more thermal conducive than steel, the aluminium products can be used in both cooling and heating applications. Its nontoxic properties, the metal is extensively used in the manufacture of several cooking utensils and appliances.
Grade: 6061
Aluminium tubes are an essential component in many industrial applications. It is corrosion-resistant, water proof, rustproof. It works very well in low temperatures and retains its toughness and hardness. It is being more thermal conducive than steel, the aluminium products can be used in both cooling and heating applications. Because of the material strength and lightweight construction, these components are suitable for use in structural and general engineering and manufacturing applications across a wide range of industries, including building, construction, and transportation.
Grade: 6061 / 6063
Aluminum chequered / tread plate is widely used in decorative, shipbuilding and architectural applications. Having good forming, drilling and welding ability, Its raised diamond lug pattern provides good slip resistance.
Grade: AA 1100 H14
Size: 1.5MM – 6.0mm Width: 4ft x 8ft / 4ft x 12ft
NO | DIMENSION | WEIGHT PER SHEET (KG) |
1 | 1.5MM X 1219MM X 2438MM | 12.98 |
2 | 2.0MM X 1219MM X 2438MM | 17.31 |
3 | 2.5MM X 1219MM X 2438MM | 21.64 |
4 | 3.0MM X 1219MM X 2438MM | 25.97 |
5 | 4.0MM X 1219MM X 2438MM | 34.62 |
6 | 4.5MM X 1219MM X 2438MM | 38.95 |
7 | 5.0MM X 1219MM X 2438MM | 43.28 |
8 | 6.0MM X 1219MM X 2438MM | 51.94 |
